Hot-dip galvanized ground screws and electric pile drivers, engineered and produced since 2009. CE & EPD certified, shipped to Europe, Russia, Australia and the Americas.

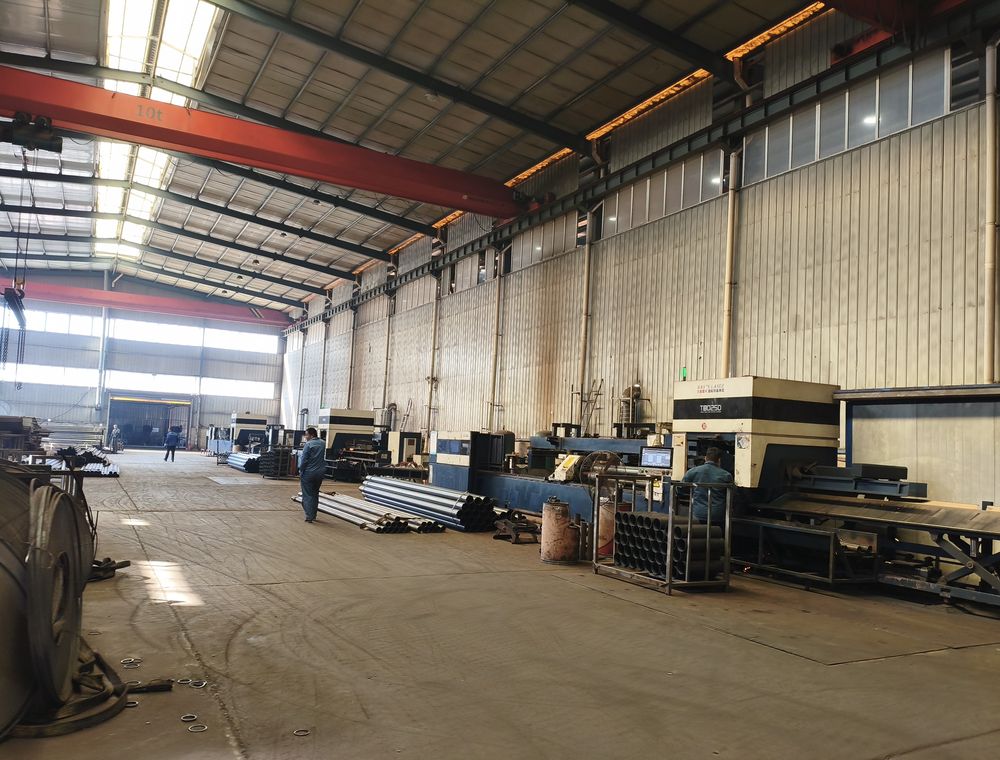

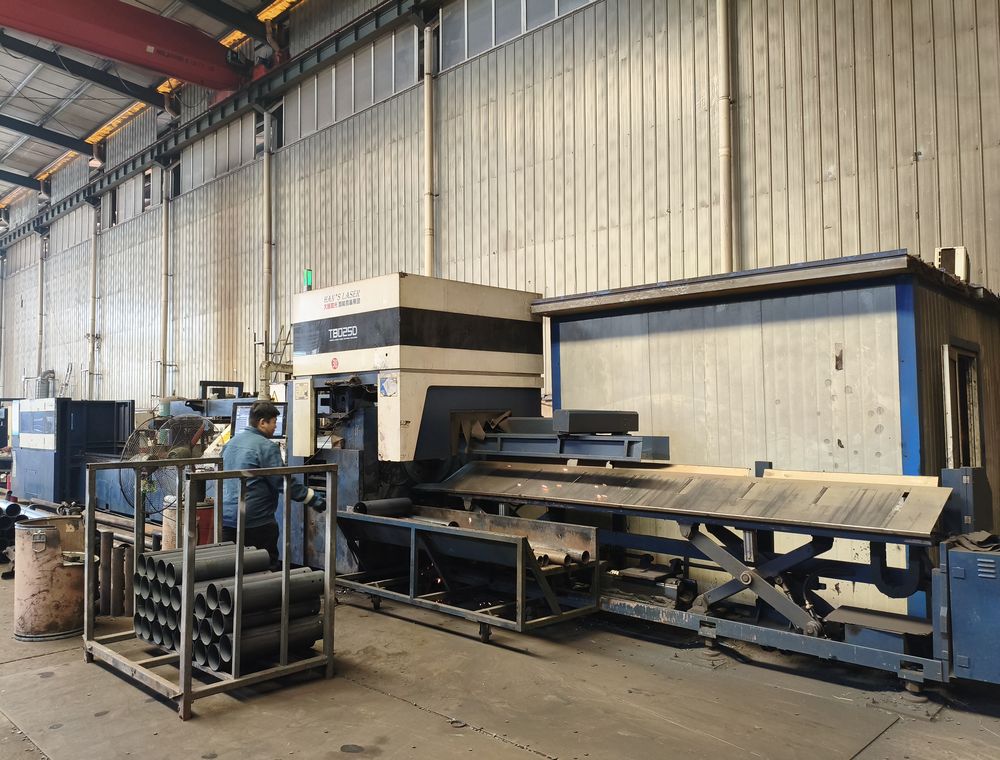

JIABEI LEXIN has specialized in ground screws and electric pile drivers since 2009. Our two production bases in Hebei Province cover about 20,000 m² of site area with 16,000 m² of buildings, equipped with fully automatic laser cutting lines, robotic welding, forging and hot-dip galvanizing — an annual capacity of over 3 million ground screws.
| No. | Equipment | Brand | Quantity |
|---|---|---|---|

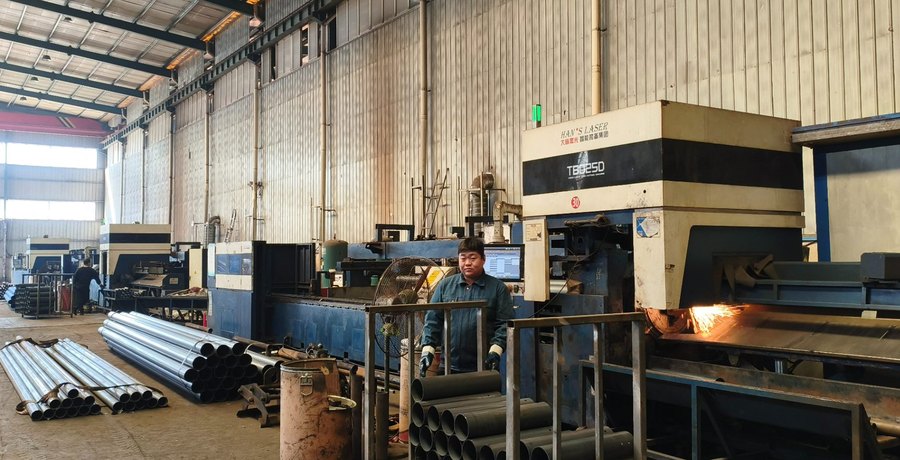

| 1 | Laser cutting line | Han's Laser | 3 |

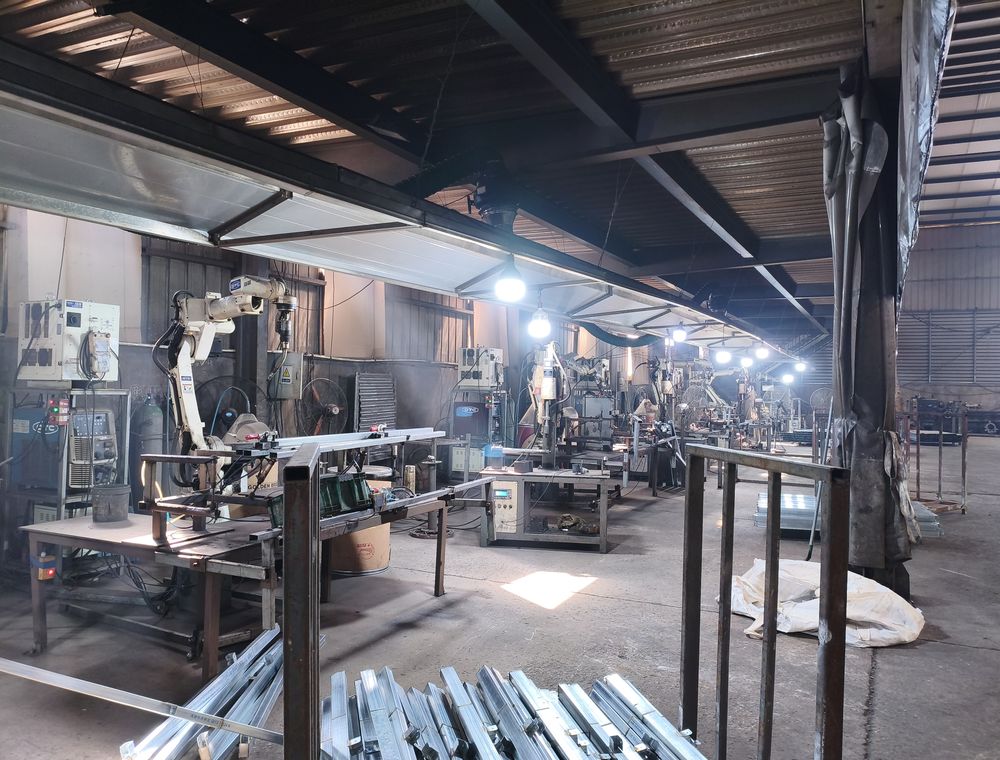

| 2 | Welding robot | OTC | 30 |
| 3 | Welding machine | Megmeet | 120 |

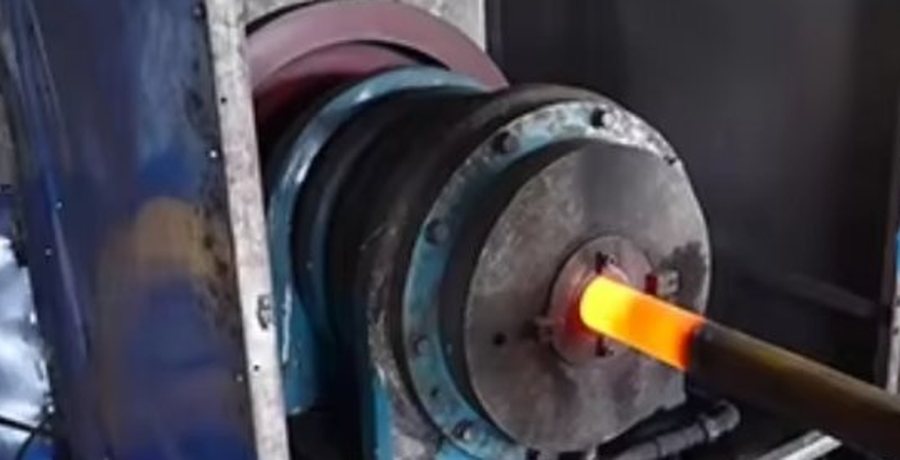

| 4 | Automatic tube tapering machine | — | 8 |
| 5 | Semi-automatic tube tapering machine | — | 5 |
| 6 | Plasma tube cutting machine | — | 3 |
| Total core equipment | 169 units | ||

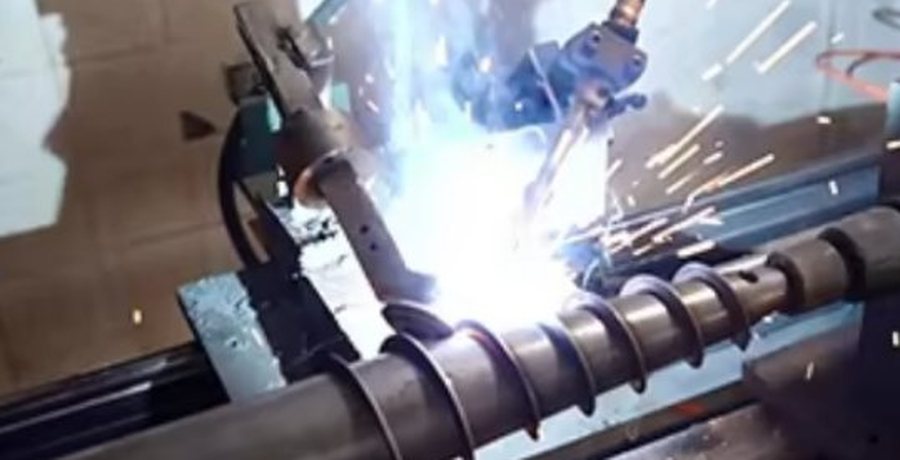

Spiral helix welding on the production line

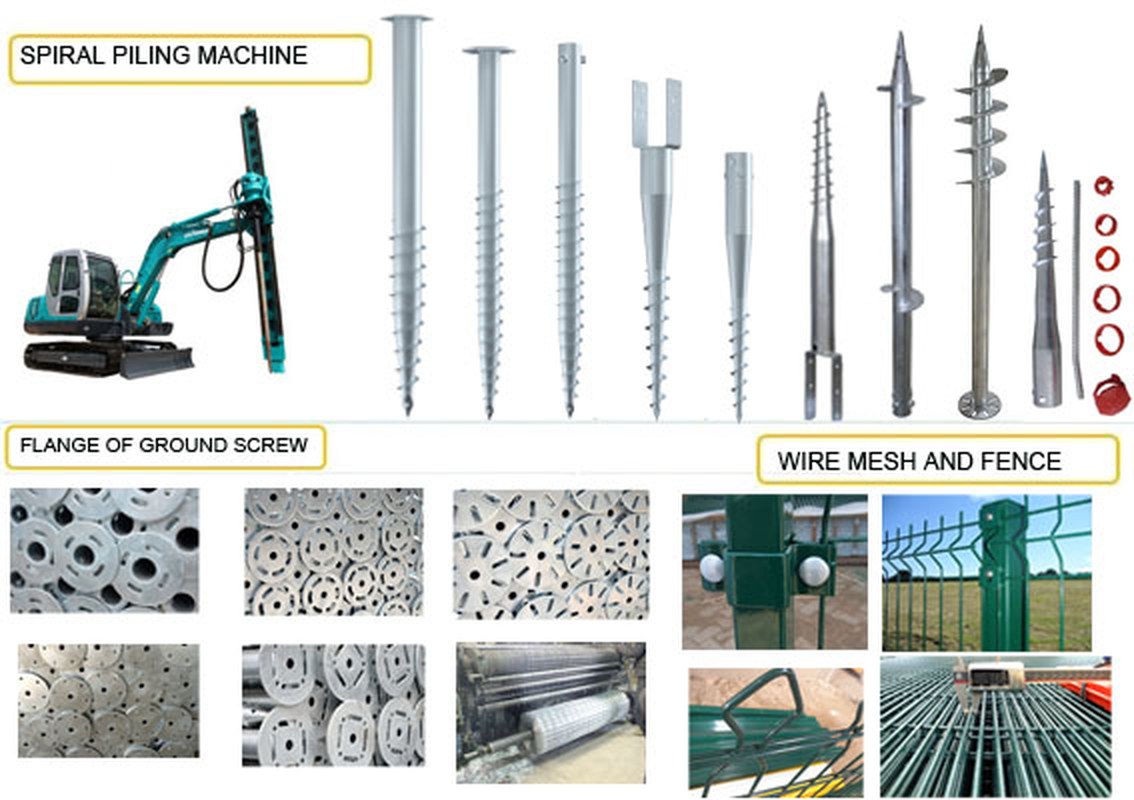

Two product lines designed to work together: electric pile drivers for fast installation, and a full range of hot-dip galvanized ground screws for every soil and structure.

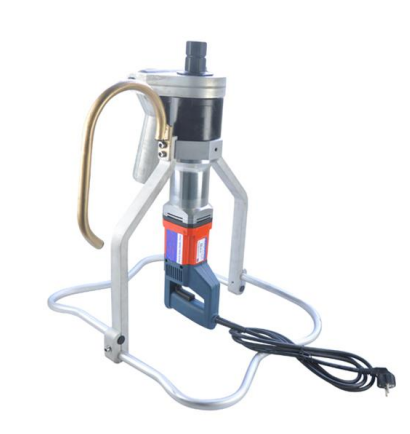

Hand-held and stand-mounted electric drivers for fast, low-noise installation of ground screws.
| Max torque | 2,600 N·m |
| Ground screw size | Φ68 × 1,200 mm |
| Power | 1,600 W / ~230 V |
| No-load speed | 12 / 6 r/min (two-speed) |
| Frequency | 50–60 Hz |
| Max current | 7 A |
| Max torque | 3,500 N·m |
| Ground screw size | 76 × 1,800 mm |
| Power | 1,500 W / 220 V |
| Rotation speed | 3 r/min |
| Host weight | 19 kg |
| Square head | 38 × 38 mm |
| Max torque | 3,600 N·m |
| Ground screw size | Φ76 × 1,800 mm |
| Power | 2,000 W / ~230 V |
| No-load speed | 12 / 6 r/min (two-speed) |
| Dimensions | L 608 × H 140 mm |
| Max current | 9 A |

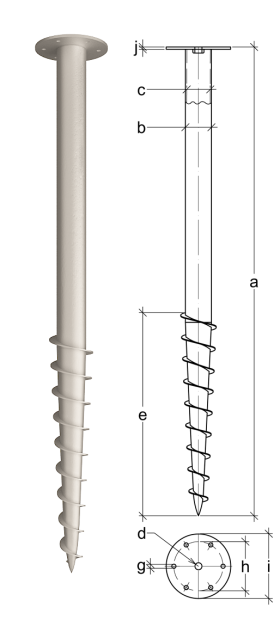

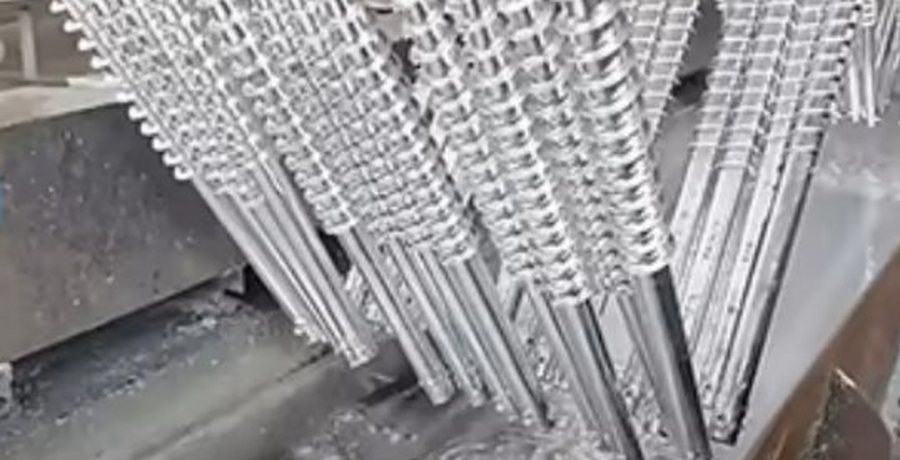

Hot-dip galvanized to DIN EN ISO 1461, steel grade Fe360A (ISO 630).
| Pipe diameter | 76 / 88.9 / 114 mm |
| Length | 1,200 – 3,500 mm |
| Wall thickness | 3.0 – 4.0 mm |
| Flange | Ø 220 mm × 8 mm, 6 × Ø14 holes |
| Load (F76×1600) | 35 kN compression |

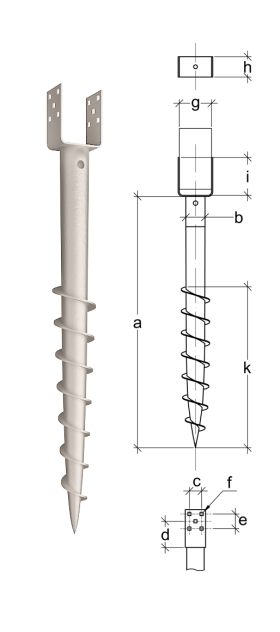

| Pipe diameter | 71 / 91 mm |
| Length | 685 – 865 mm |

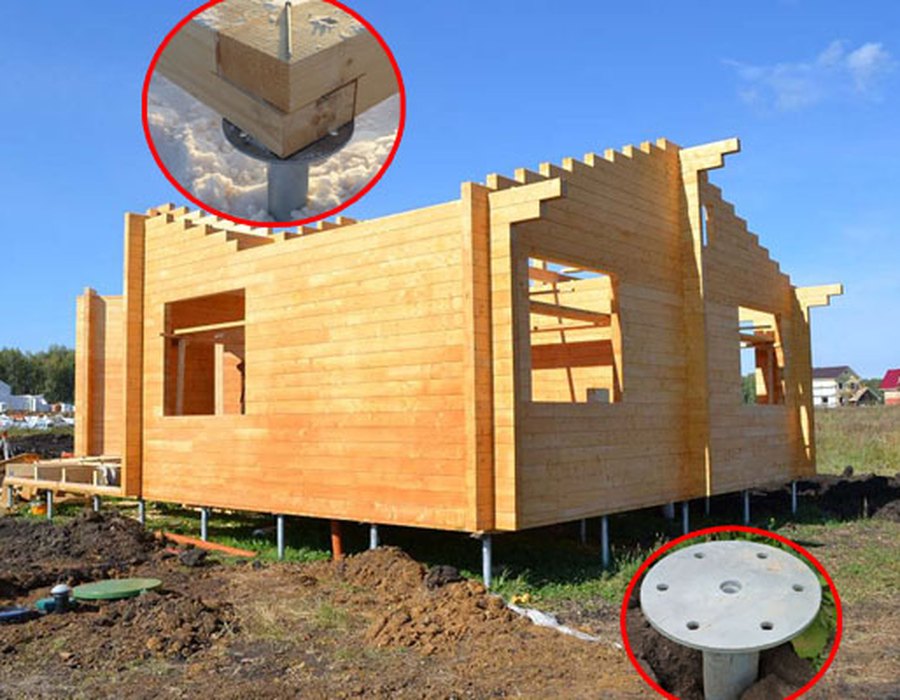

| Bracket | U-head for timber beams |
| Surface | Hot-dip galvanized |

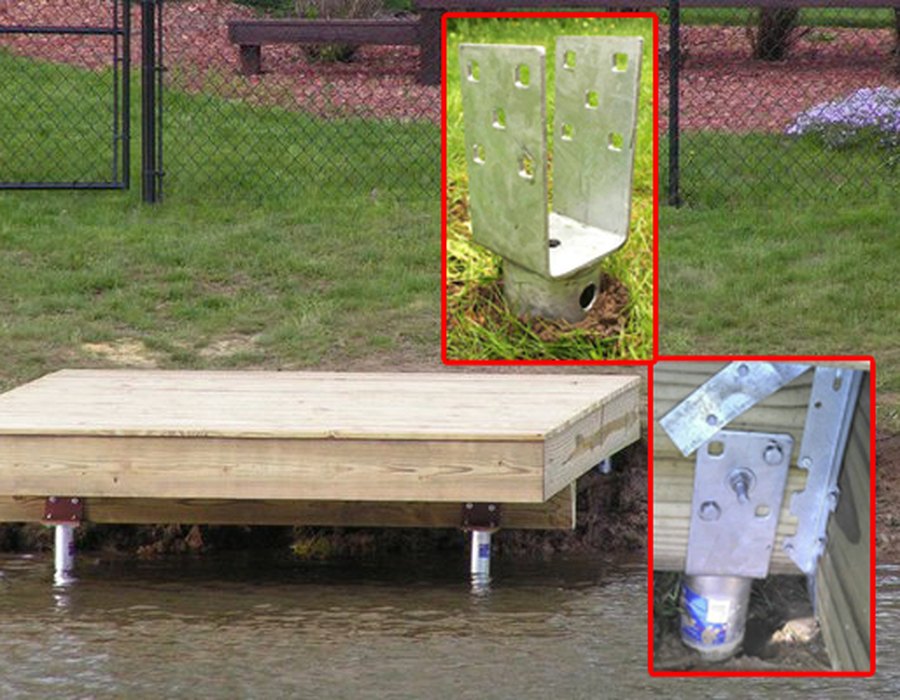

| Best for | Timber houses, decks, fences |
| Pipe diameter | 60 – 114 mm |
| Length | 550 – 1,000 mm |
| Top | Threaded stud / nut connection |
| Surface | Hot-dip galvanized |

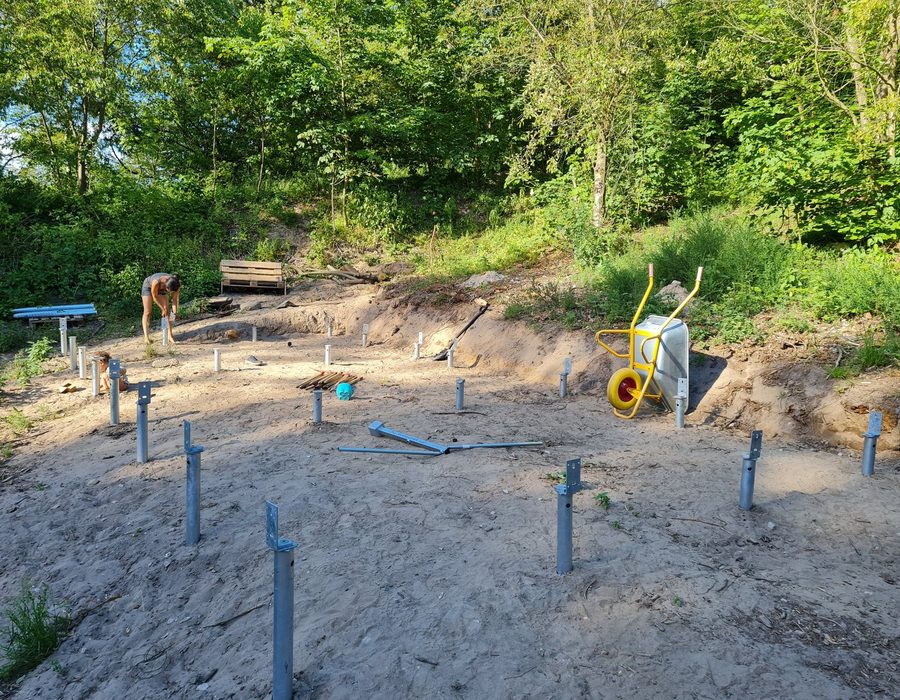

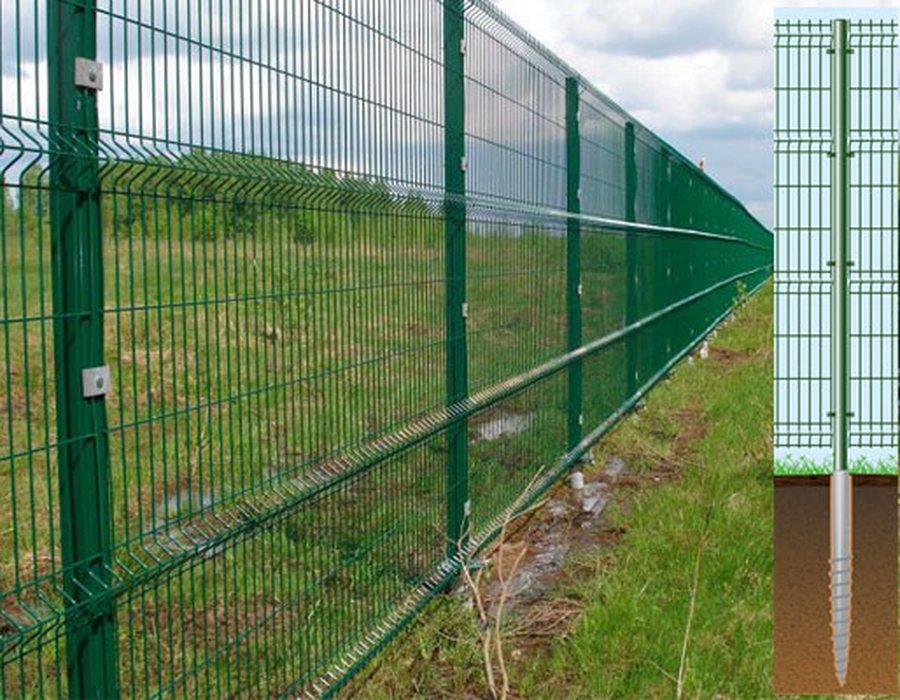

| Best for | Fences, signs, light structures |

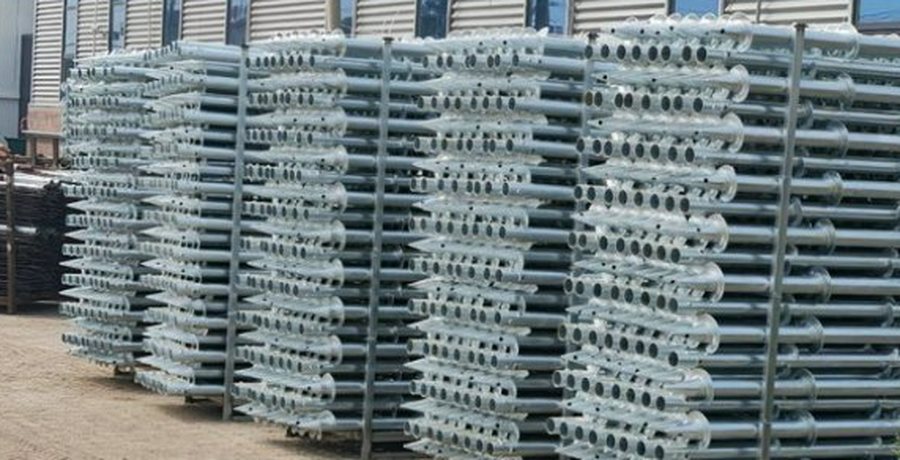

From steel pipe to packed pallets — six controlled steps at our production bases.
Both certificates are issued to QINGDAO JIABEI LEXIN INDUSTRY AND TRADE CO., LTD and cover the galvanized ground screws we supply. Original PDFs are available for download and verification.
Send us your ground screw dimensions, quantities and destination port — we reply within 24 hours on working days.
